Parts of a Light Fixture

What a Light Fixture Is Made Of: 12 Parts at a Glance

Every light fixture includes the same 12 parts, though a flush mount hides some inside the housing while a pendant leaves them exposed. The parts group by job, not by where they physically sit.

A few extras show up on some fixtures without being essential to how the light works: a built-in switch or dimmer, a socket cover, and swag hooks for routing a hanging cord.

Light-Producing Parts

4 parts carry current and turn it into light: the bulb, the socket that holds it, the wiring that feeds it, and the driver or ballast that regulates it. Wiring feeds the driver, the driver regulates power to the socket, and the socket holds the bulb. Break any link in that chain, and nothing lights up.

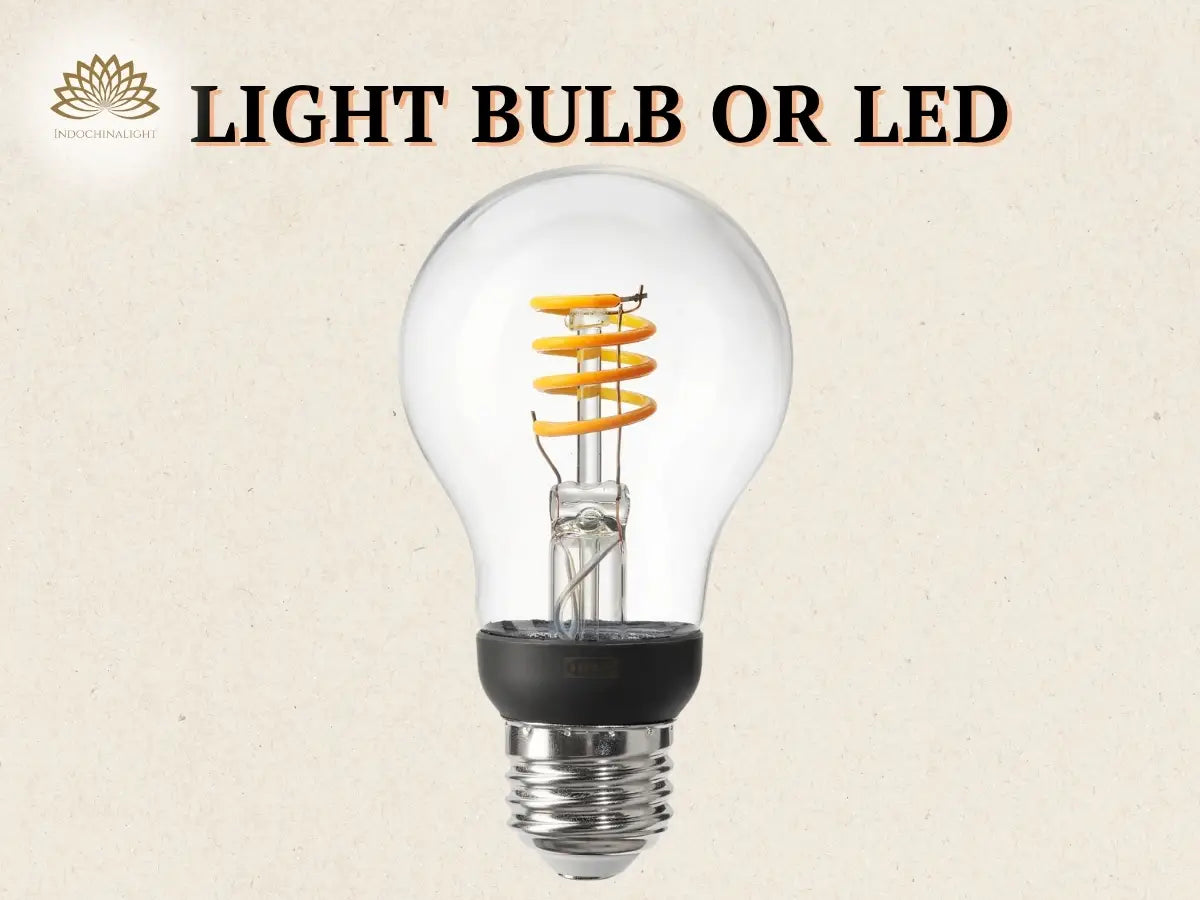

Light Bulb or LED Module

The bulb produces the light itself, and it sets brightness, color, and running cost more than any other part in the fixture. Four numbers decide the outcome: lumens (brightness), Kelvin (color temperature, where 2700K reads warm and 5000K reads cool and closer to daylight), watts (power draw), and rated life. The right wattage for a pendant light depends on the room it's in, not just the socket's maximum rating.

LED bulbs typically last 15,000 to 50,000 hours, compared with roughly 1,000 hours for a standard incandescent bulb, according to the U.S. Department of Energy. That gap is why most fixtures sold today ship LED-ready.

Some fixtures skip the bulb entirely. Integrated LED units have the LED chip soldered directly to the housing, so there's no socket and nothing to unscrew when it eventually fails. You replace the whole fixture instead.

Incandescent and LED bulbs, cut away to compare internals

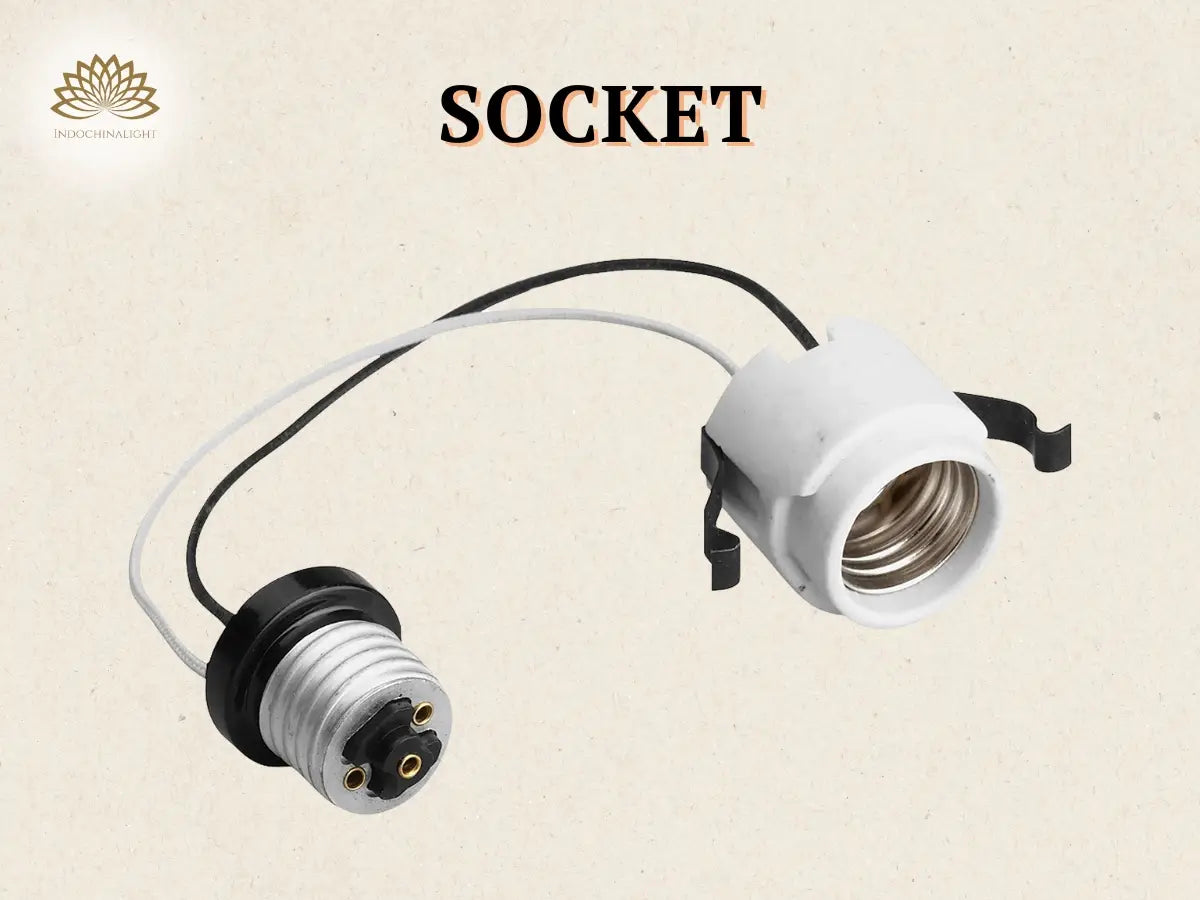

Socket (Lamp Holder)

The socket holds the bulb and transfers current from the fixture wiring to the bulb base, so the base code stamped on your bulb has to match the socket exactly. The letter in that code names the fitting style, E for Edison screw and G for pin-based, while the number gives the diameter or pin spacing in millimeters. If you've seen E26 and A19 used almost interchangeably in bulb listings, they're actually naming two different things, base size versus bulb shape.

Check the wattage rating stamped on the socket before you screw in a bulb. Exceed it and you've created a fire risk, not just a shortened bulb life.

Lamp socket exploded: shell, contact tab, insulation, terminals

Wiring and Electrical Connections

Every hardwired fixture has 3 conductors: hot, neutral, and ground. In the U.S., hot is black or red, neutral is white, and ground is green or bare copper, but fixture leads are often both black, so you tell them apart by insulation texture instead: ribbed for neutral, smooth for hot.

Cut power at the breaker and confirm it's off with a voltage tester before touching any connection. Never skip the ground wire. It's the one thing standing between a wiring fault and a shock.

Hot, neutral, and ground wires joined with a wire nut

Ballast or LED Driver

A driver or ballast sits between the house supply and the light source to hold voltage and current steady. Ballasts limit current in fluorescent and HID lamps; LED drivers convert AC power into the low-voltage, constant current an LED board needs.

If an LED fixture flickers or buzzes with a good bulb installed, check the driver first. It's the usual culprit, not the bulb everyone suspects.

Fluorescent ballast and LED driver compared side by side

Support and Mounting Parts

5 parts carry the fixture's weight and hide its connections: the canopy, mounting bracket, junction box behind it, suspension, and housing. Weight travels from the ceiling joist to the junction box, to the bracket, to the canopy, and finally down the suspension to the fixture body.

Canopy

The canopy is the shallow cover that sits flat against the ceiling or wall and conceals the junction box and wire connections. It does two jobs: concealment and contact protection, and on most fixtures, nothing structural. The bracket carries the load, not the canopy.

Sizing matters here. The canopy must fully cover the junction box opening: a standard 4-inch octagon box needs a canopy about 5 inches or more in diameter, with screw slots that line up with the bracket underneath.

Canopy lifted to reveal the junction box it conceals

Mounting Bracket

The mounting bracket, also called a crossbar or mounting strap, is the metal piece that screws to the junction box and carries the fixture's full weight. It threads onto a nipple or mounting screws that pass through the canopy.

The bracket that carries a fixture's full weight

Junction Box

The junction box itself belongs to the building's wiring, not the fixture, but it decides what the fixture can safely do. A standard box has a limited weight rating. Hang a heavy chandelier or ceiling fan from one anyway, and you're relying on luck, not hardware. What you actually need is a fan-rated brace box. Check this part before you buy anything heavy, not after.

Junction box opened: clamp, mounting ears, cover screws

Chain, Rod, or Cord

The suspension connects the canopy to the fixture body and sets the hanging height. Four types cover most situations:

• Rod (downrod): fixed height, clean vertical line, best on high ceilings

• Chain: adjustable by removing links, ideal for sloped ceilings or swag installs

• Cable: minimal profile, suits contemporary fixtures

• Cord: flexible, common in plug-in and swag setups

As a rough guide, hang a pendant 30 to 36 inches above a dining tabletop, or 30 to 40 inches above a kitchen island. For exact numbers by room, table width, and ceiling height, see our full lighting size guide.

Chain, rod, and cord: three ways to suspend a fixture

Housing (Fixture Body)

The housing is the frame or shell that everything else attaches to, whether that's a recessed can, a flush-mount pan, chandelier arms, or a sconce backplate, depending on the fixture. Ever notice a fixture running warm even with a low-wattage LED bulb? That's usually the housing, not the bulb. Metal housings and heat sinks pull heat away from the LED board, and trapped heat shortens LED life inside an enclosed fixture.

Housing cutaway: heat sink fins and wiring channel

Light-Shaping and Decorative Parts

The remaining parts decide where the light goes and what the fixture looks like doing it. A shade blocks and redirects; a diffuser scatters; a reflector bounces; a lens focuses. Similar-sounding jobs, different results.

Shade or Diffuser

The shade covers the bulb and controls how light leaves the fixture, and its opacity matters more than its shape. A clear or open shade gives maximum output but shows the bulb, so it works best with a low-glare finish. A translucent shade, whether glass, linen, or woven rattan, spreads an even ambient glow. An opaque shade, usually metal, sends light straight down, which is what you want over a desk or kitchen island.

Materials carry their own character: glass, metal, fabric, and woven rattan or bamboo each behave differently under a bulb. Woven shades cast a patterned light through the gaps in the weave, which is part of why a handwoven rattan pendant reads so differently from a plain glass globe.

Opaque shade vs translucent diffuser, same fitter ring

Trim, Lens, and Reflector

Recessed and directional fixtures add three optical parts that pendants usually skip. The trim, or flange, is the visible ring that finishes the ceiling cutout and shapes the beam; flanged versions sit proud of the ceiling, flangeless ones sit flush. Behind it, the reflector, a mirrored inner surface, redirects stray light downward instead of losing it inside the housing. Then there's the lens, the cover that focuses or spreads the beam and cuts glare, standard on spotlights, track heads, and outdoor fixtures.

Trim, reflector, and lens stacked in assembly order

Finials, Fitters, and Cord Hardware

Small hardware pieces hold the shade on and keep the cord where you want it. A fitter, the ring or spider that attaches the shade to the socket or harp, gets locked down by a finial, the decorative cap that finishes the job. Table lamps use a harp instead, the wire frame that holds a shade above the bulb. And if a hanging cord needs redirecting to a different point on the ceiling or wall, that's what a swag hook or cord stay is for.

These are the parts people search for by photo instead of by name, and, conveniently, the cheapest ones to replace.

Finial, fitter, harp, and swag hook compared

Which Parts Each Fixture Type Has

No single fixture uses all 12 parts. A recessed downlight has a housing and trim, but no canopy or shade; a pendant has exactly the opposite. Which parts apply to you depends entirely on the fixture type you're looking at.

And there are 9 broad types of light fixtures in total, this guide focuses on the 6 most common.

• Pendant: Carries all 12 parts from the diagram at the top of this guide. The reference point every other type gets measured against.

12 parts of pendant light

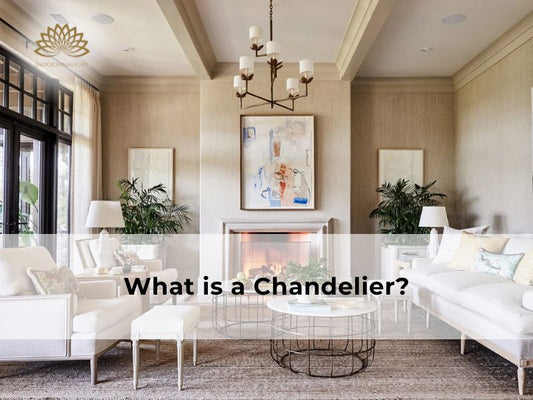

• Chandelier: Same parts as a pendant, scaled up. Multiple arms, multiple sockets, and a bracket rated for the extra weight.

Parts of chandelier

• Flush mount: housing, diffuser, socket, and wiring, with no suspension needed. The canopy is integrated into the housing.

Parts of a flush-mount light

• Recessed: Housing can, trim ring, socket, driver. No canopy, no shade, no suspension: the trim ring does both jobs.

Parts of recessed lighting

• Wall sconce: backplate, bracket, socket, wiring. The backplate takes over the canopy's role entirely.

Parts of wall sconce

• Floor or table lamp: Base, harp, socket, wiring. A base, harp, and finial replace the canopy and suspension.

Parts of floor or table lamp

Frequently Asked Questions About Light Fixture Parts

Is a light fixture the same as a lamp, luminaire, or bulb?

Not quite, though stores use the words interchangeably. A fixture is the whole assembly. "Lamp" technically means the light source itself, though people also use it for a portable fixture like a table lamp, which is where the confusion starts. Luminaire is the professional, spec-sheet term for the complete engineered unit, while a bulb is just the replaceable light source alone. If you order a "lamp" online expecting a bulb, you might get a table lamp instead.

How do I know which part of my fixture has failed?

The symptom usually points to the part. A bulb that dies fast often means socket contact problems, or heat buildup in an enclosed fixture. Flicker or buzz on an LED points to the driver, or a dimmer that isn't LED-compatible. A sagging fixture means the bracket and junction box need attention, not the canopy. This page identifies the faulty part; for step-by-step fixes, see our guide to replacing a pendant light.

Are light fixture parts universal or brand-specific?

Sockets, bulbs, and standard-thread hardware are interchangeable by code, so an E26 bulb fits any E26 socket regardless of brand. Canopies, shades, and decorative arms are usually brand- and model-specific, which is why replacing just the shade on an old fixture can be harder than replacing the bulb.

Why do some fixtures use a chain instead of a rod?

Chains adjust by removing links, which makes them the practical choice for sloped ceilings, swag installations, or rooms where you're not sure of the final height yet. Rods give a fixed, clean vertical line and suit standard ceiling heights where that flexibility isn't needed.

Why do some fixtures have downrods?

Downrods extend a fixture away from the ceiling for 3 reasons: clearance in a low-ceiling room, correct hanging height over a table or island, and better airflow, which matters most on ceiling fans with an integrated light.
